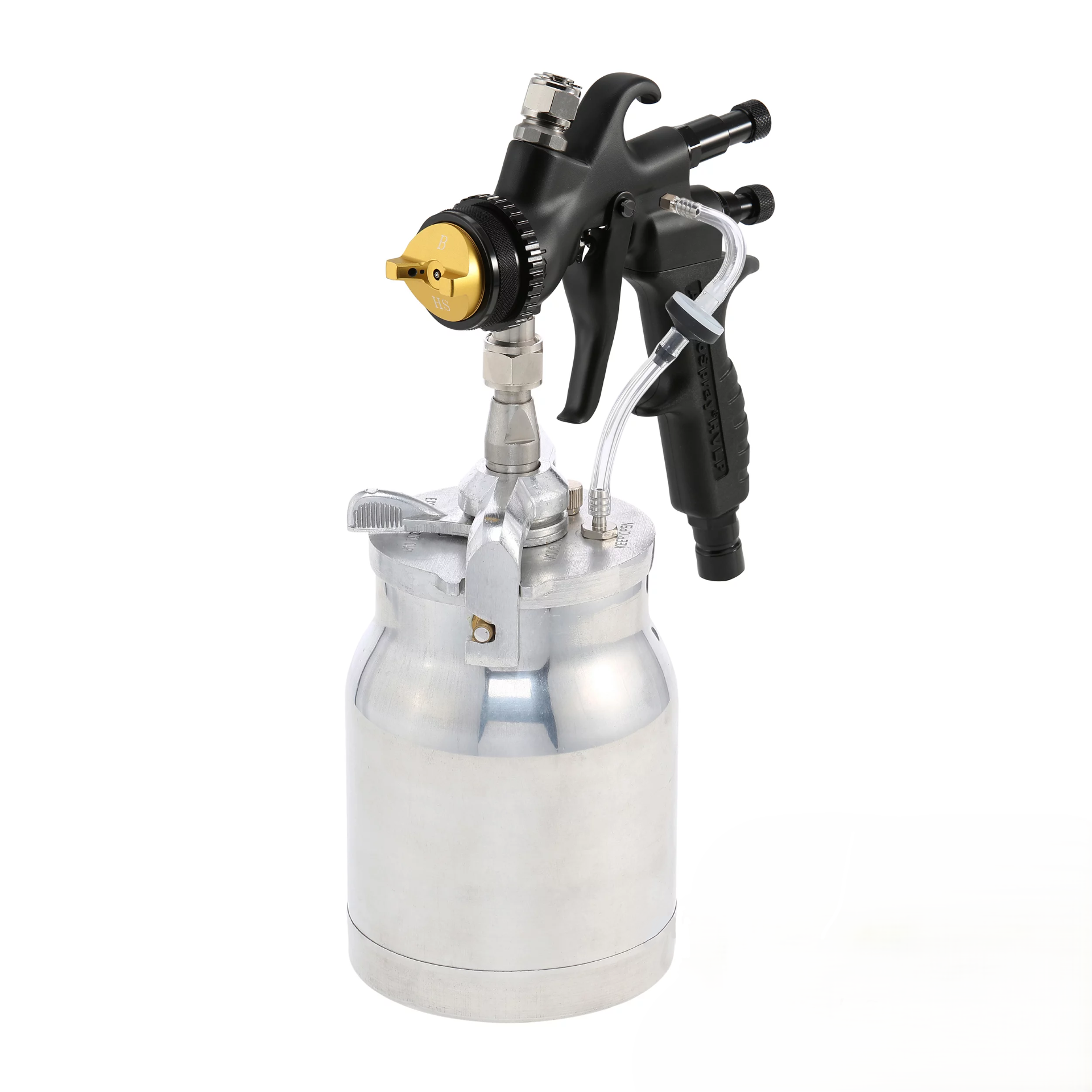

The Apollo A7700QT AtomiZer™ Black Edition is a professional HVLP turbine spray gun package designed for finishers who need precision, flexibility, and high-quality atomization from one spray gun system. Built with Apollo’s TrueHVLP™ technology, the A7700 is engineered to deliver smooth, controlled finishes with reduced overspray and excellent transfer efficiency.

This non-bleed HVLP spray gun can be used with compatible turbine systems or adapted for use with an air compressor rated at 3 HP with a 20-gallon / 75-liter tank or larger. Its versatile design supports multiple cup and fluid feed configurations, making it a strong option for wood finishing, cabinetry, millwork, automotive coatings, production finishing, and other professional spray applications.

•     Professional non-bleed HVLP turbine spray gun design

•     Black Edition – E-Coating scratch-resistant spray gun body

•     Xpansive™ fan control ring with indicator markings for repeatable spray pattern adjustment

•     MicroTech™ Atomization Technology for fine particle atomization and smooth finish quality

•     Improved air distributor plate for enhanced spray performance

•     Upgraded robust valve bushing design

•     Stainless steel fluid components, including needle and nozzle

•     Dual material inlet design for top or bottom pressure feed setups

•     Dual air inlet capability for turbine connection or compressed air adaptation

•     Material adjustment knob with positive and negative indicators

•     Overspray control knob included for turbine operation

•     Lightweight, balanced aluminum spray head and gun body

•     Aircraft-grade aluminum construction with durable plated matte bronze finish

•     Internal parts made from marine-grade stainless steel

•     Designed without O-rings for increased durability and reliability

•     Easy cleanup and maintenance

•     AWFS Visionary Awards winner

•     Backed by a 2-year parts and labor warranty

The Apollo A7700 uses a quick-change, 3-turn color-coded air cap system, allowing users to quickly change setups based on coating type, finish requirement, and spray application.

•     Black CC: 0.5 mm

•     Green A: 0.8 mm

•     Gold B: 1.0 mm to 1.5 mm

•     Blue C: 1.8 mm to 2.0 mm

•     Silver D: 2.5 mm

•     Gold B-HS: 0.8 mm

•     Blue C-HS: 1.8 mm to 2.0 mm

•     Silver D-HS: 2.5 mm

Available nozzle and needle sizes include 0.5 mm, 0.8 mm, 1.0 mm, 1.3 mm, 1.5 mm, 1.8 mm, 2.0 mm, and 2.5 mm. The standard installed setup is a 1.0 mm nozzle set with the B air cap.

Automotive coating setups commonly use the 0.8 mm nozzle set with B-HS air cap or the 1.0 mm nozzle set with B-HS air cap.

The A7700 spray gun is designed to support multiple cup and remote feed configurations, giving users flexibility for small touch-up work, standard finishing, or larger production spraying.

Compatible configurations include:

•     Pressurized gravity feed cups: 3 oz, 8 oz, or 20 oz

•     Pressure feed bottom cups: 8 oz or 1 qt

•     3M PPS H/O pressure cup system: 13.5 oz or 28 oz, top or bottom feed

•     Production pressure pots: 2 quart / 2 liter or larger

The spray gun is ready for use with compatible pressure pots or cup accessories using a 3/8" / 10 mm fluid coupler.

•     23 PSI (Maximum pressure when running off an air compressor)

•     7 to 11 CFM (Minimum CFM when running off an air compressor)

The Apollo A7700QT spray gun package includes:

•     Apollo A7700 AtomiZer™ spray gun

•     Standard 1.0 mm nozzle set with B air cap installed

•     1 qt Teflon-coated aluminum pressure cup

•     Spare parts kit

•     Sample bottle of genuine Apollo spray gun lubricant

•     Stainless steel material filter

•     Deluxe spray gun carrying case

•     Cleaning brush and wrench / spanner

•     Bushing insert tool

•     Quick start guide

•     Owner’s manual

Additional nozzle sets are available separately in 0.5 mm, 0.8 mm, 1.0 mm, 1.3 mm, 1.5 mm, 1.8 mm, 2.0 mm, and 2.5 mm sizes.

Additional color-coded air caps are also available separately, including CC, A, B, B-HS, C, C-HS, D, and D-HS.

The 3M PPS cup system is sold separately.

For older turbine systems, the A7538A External Air Relief Valve is required when using the A7700 Series non-bleed HVLP spray gun.

Replacement repair kits:

•     A7547P: Repair kit for A7700 AtomiZer® spray gun

•     A7547-Q: Repair kit with gasket for the 1 qt aluminum cup

For additional setup, maintenance, repair, and parts details, refer to the Apollo A7700 part sheet and instruction manual.
