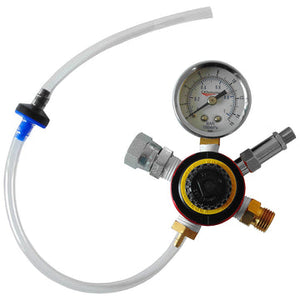

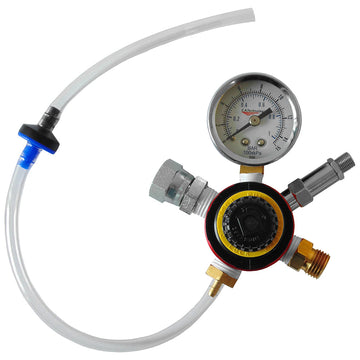

The C.A. Technologies by-pass regulator and gauge (part # 52-5R2) is ideal for any pressure feed spray guns that do not have a “ported head” as a means of pressurizing the cup. The regulator connects to the air inlet fitting on most pressure feed spray guns (bottom of spray gun handle) and will allow for air regulation to the pressure cup while also allowing air pressure to pass through unregulated to the spray gun for atomization. We recommend 3-5 psi for most pressure cups. (Most pressure cups will have a 10 psi maximum pressure).

Specifications:

• By-pass regulator & gauge (0-15psi)
• Tubing and a one-way check valve included (pressure flow should be from the regulator to the pressure cup)
• Safety relief valve included on regulator
• ¼” NPS male & female fittings

Please note that this regulator will work with any aluminum or stainless steel pressure cup as well as the 3M PPS H/O pressure cups as a means of providing and controlling the air pressure supplied. Most pressure cups are rated to a max of 10 psi.
