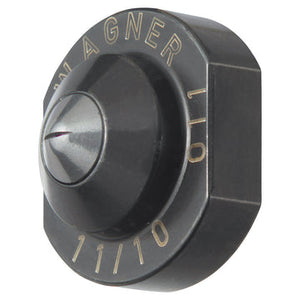

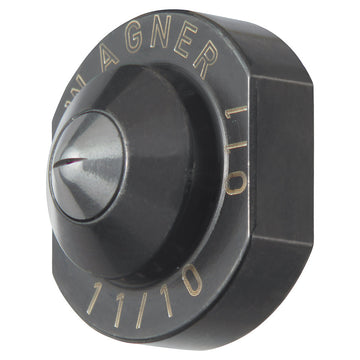

The .013"" Wagner interchangeable AirCoat (Air Assist Airless) tip works with the GM 4700AC, GM 4700AC-H & GM 4100AC AirCoat (Air Assist Airless) spray guns.

Specifications:

• .013"" orifice size
• 6 oz./min flow rate (The flow rate is ounces of water at 1450 psi)
• 10, 20, 30, 40, 50, 60 & 80 degree tip angles available
• Pattern width dependent upon tip angle (10 degree angle - 2.17“ pattern width, 20 degree angle - 3.94”, 30 degree angle - 5.71”, 40 degree angle – 7.68”, 50 degree angle – 9.84”, 60 degree angle – 11.81” pattern width & 80 degree angle – 15.75” pattern width)
• Tip can be reversed to blow out for unclogging

Information:

GM 4700AC – Manual

GM 4700AC - Brochure

Please note that diagrams and instructions for tip replacement, cleaning and troubleshooting can be found in the GM 4700AC Manual. In addition, always select an AirCoat (Air Assist Airless) tip orifice size based on material viscosity or coating manufacture’s recommendation.
